Canon imagePROGRAF TX-3000 MFP T36

Additional Information:

Scan-to-/File/Share Cloud Solution

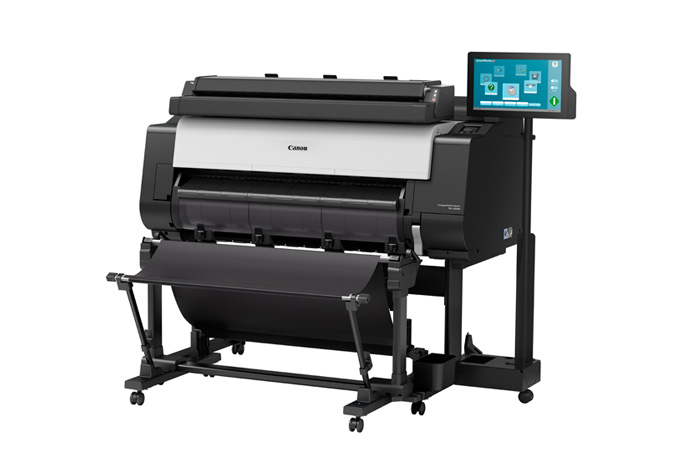

The TX-3000 MFP T36 large format printer is designed to provide fast, high-quality, large format image capture-to-output. More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The printer?s ability to print on a wide variety of media lends itself to uses in many departments and applications as well.

The imagePROGRAF TX-3000 MFP T36 includes:
TX-3000 36-inch printer
T36 Scanner
15.6″ All-in-one Touchscreen Computer
Computer Stand
TX Stacker
SmartWorks MFP Software
SmartWorks MFP software gives you the tools you need to quickly and easily scan to print/file/share large format technical documents. With a simple to use interface and scan-it-once ability, this software allows for efficient batch scanning and helps create quality scanned images that can be produced in a short amount of time. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is more efficient than ever before.Features:
Scan-to-Multipage PDF
Scan lengths of up to 315″ (26 ft) for PDF and JPEG files, and up to 598? (50 ft) for TIFF files
Ability to add custom presets with one-touch retrieval for those often-used settings
Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert
Fine detail scan feature
Ability to mark up documents directly on the monitor and preview before printing1
Enhanced administrator rights
Full integration with Canon Direct Print & Share cloud software2
T36 Scanner
The T36 scanner incorporates a SingleSensor Technology Assembly3, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.

Features:
1200 dpi maximum optical resolution, 9600 dpi maximum resolution
Image scanning of up to 36? wide, fits documents up to 38? wide
Scanning speed of up to 13? per second monochrome, and up to 6? per second color
USB 3.0 interface, 75 Mbytes / sec transfer rate
Scan a document up to 2.0 mm thick
Face up / Front load / Rear exit
Straight paper path

All-In-One Design
The new compact design of the imagePROGRAF TX 3000 MFP large format printer includes the T36 scanner that attaches to the top of the printer and a 15.6? touchscreen computer that attaches directly to the printer stand. The touchscreen monitor makes it easier for the user to preview documents for editing and mark-up. This simple-to-use touchscreen makes one-button scanning/copying easier than ever, and the embedded USB port provides the user with ease and convenience. The new design allows the scanner and printer to work independently of each other which can help increase productivity.

All-in-One 15.6″ Touchscreen Computer
A computer is included with the MFP T36 system:
Additional programs can be added to the computer
Files can be moved via a USB storage device
Files can be shared over a network via the Ethernet card

TX Stacker
Built for high productivity and increased flexibility this stacker handles documents of mixed sizes, including ARCH C, ARCH D, or ARCH E/E1sizes, and stacks them up to 100 sheets. The variety of configurations the TX Stacker can be positioned makes prints easily accessible to pick up for on-the-go printing. When not in use the TX Stacker can be folded up to conserve space.

Optional 2nd Roll Unit
The optional Multifunction Roll System is a versatile media handling solution system that enables either a second roll of media to be loaded on the printer, or can be configured as a bi-directional media Take-up unit. The optional second roll allows for the immediate switching between different media types or the use of two rolls of the same paper for up to 3900 sq. ft. for printing of large, consecutive runs. As a Take-up unit the operator can choose to use this option to rewind longer printouts, either surface on the outside or the inside of the roll.

LUCIA TD Pigment Ink Set
The TX-3000 device features an all new 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Available in 160 ml, 330 ml, and 700 ml ink tanks4, you have the ability to purchase a combination of ink sizes based on your printing volume. 970 ml of ink ships standard with the TX-3000.

Sub Ink Tank System
The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it, helping eliminate any wasted ink. The empty tanks can also be replaced on-the-fly without stopping the printer. This is extremely useful during your long print jobs.

Print Head PF-06
The newly designed, 6-channel PF-06 Print Head is engineered to work with the printers? high-speed carriage and high-frequency ink ejection to enable fast printing. This printer boasts Canon’s print-head technology that lays down ink with exceptional speed and accuracy. The PF-06 print head incorporates a nozzle orifice shape to help minimize mist spray, producing clean lines and text. The high-precision, high-density print head, with a total of 15,360 nozzles, lays down 5 picoliter-size ink droplets that produce sharp detail and excellent image quality. The result is consistently accurate 2400 x 1200 dpi output with fine lines that are accurate to ?0.10% and as thin as 0.02mm.

L-COA Processor
Canon’s advanced print head technology achieves speeds up to 832 ft?/hr on uncoated media. Print a full color, 2400×1200 dpi high resolution image with plain paper in ?42 seconds5. Powering these incredible print speeds is Canon’s L-COA processor, which controls the optimal ink layout helping to ensure high resolution output.

Automatic Media Loading
The TX Series offers Automatic Media Loading for ease of use. You simply can place a roll of media into the printer, and let it do the rest of the work! The printer detects the roll and then automatically feeds it through. No manual feed is required.

Direct USB Thumb Drive Printing
A new feature for the imagePROGRAF 5-color Printers, the TX Series includes the accessibility of USB thumb drive printing, supporting JPEG and PDF file formats. Simply load your files onto your USB drive and step right up to the printer and plug-in.

Security Features6
The TX Series large format printers come equipped with several security features designed to help protect confidential information:

Secure Communication
802.1x Authentication
SNMPv3
SSL/TLS
IPSec
Functionality Restrictions
Panel Lock by Remote UI
Remote UI Multilevel
Hide IP From Panel
Panel Access Control
Job Storage
Secure Storage
Self Encrypting Hard Disk
Secure Disc Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
The following functions can be disabled in administrator mode:
Direct USB Thumb Drive Printing
Internet Connection
FTP and Telnet communication protocols
Job Log Look-up

Wi-Fi Compatible7
Printing jobs quickly is critical on the work site and in the office. Wi-Fi connectivity can transfer technical drawing files and help speed up your workflow – perfect for high-volume printing. No Wi-Fi router is needed, which can provide greater freedom during installation. Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.

500GB Hard Drive
A built-in 500GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage, and retrieval.
